Installation

WARNING

Please never fold the ribbon ! It may damage the wires.

Before Starting

Unplug all cables and remove the disc in the drive.

Open the console

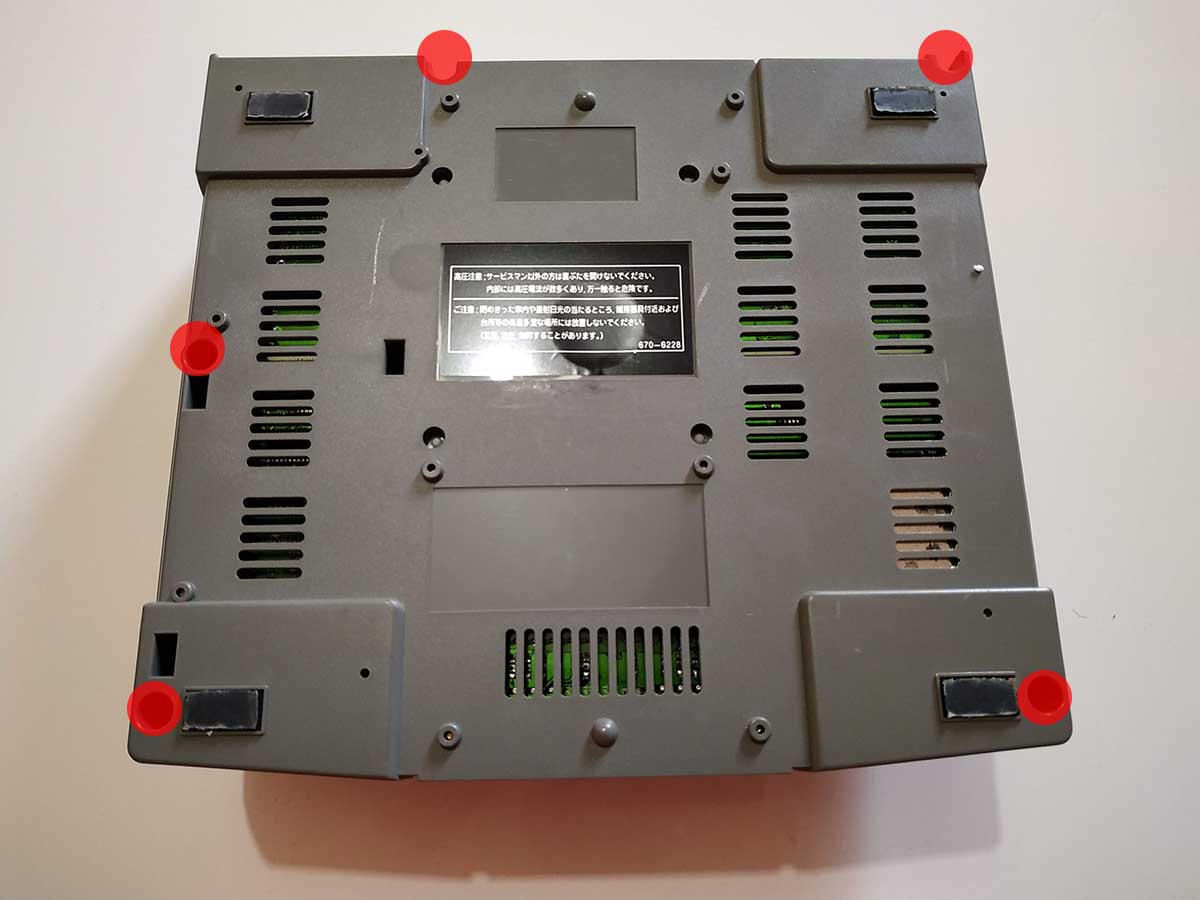

Flip the console back. Remove the five screws.

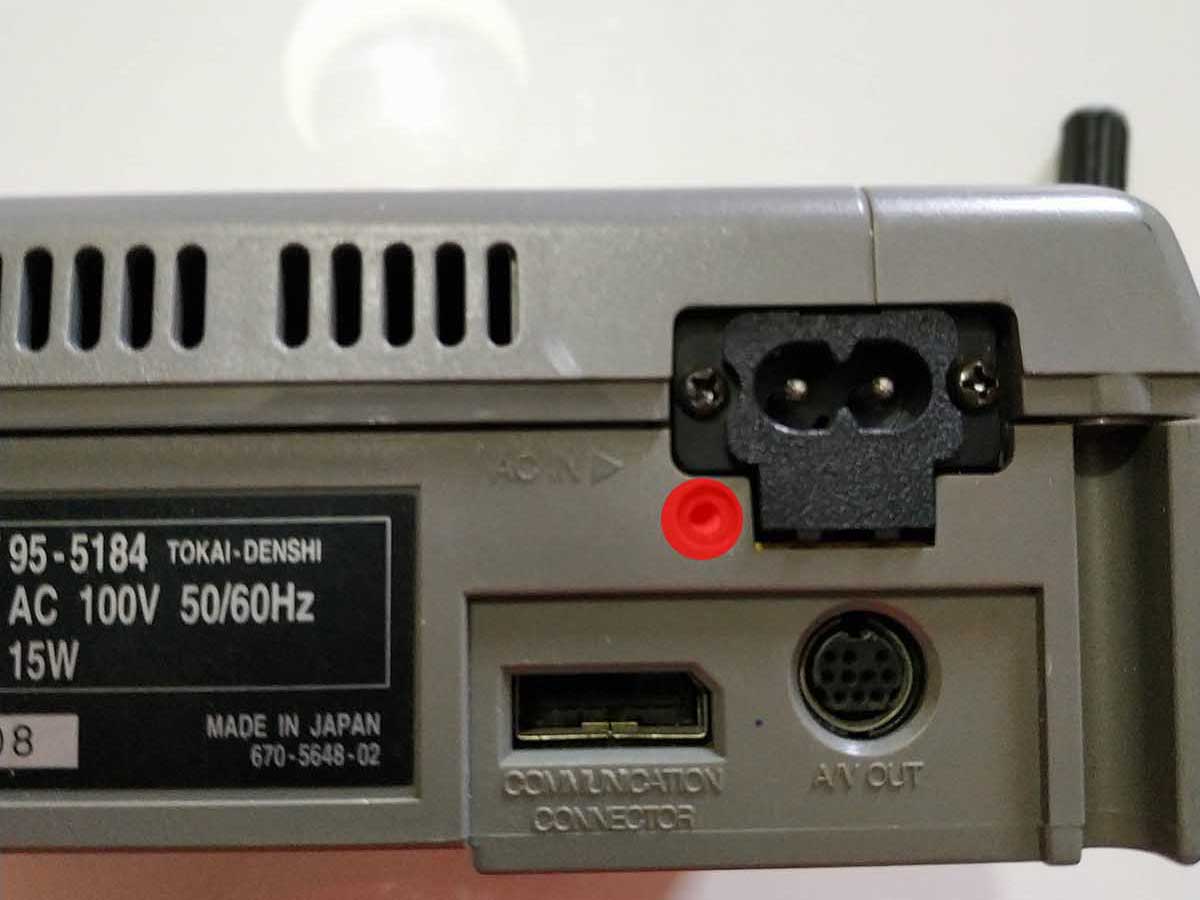

With VA0 Version remove the screw near the power plug

Remove the cd drive

• Unplug the connectors on the left side (power and cd detection).
• Unplug the ribon cable.

Install Fenrir

• Plug the power cable - 4 or 5 pins

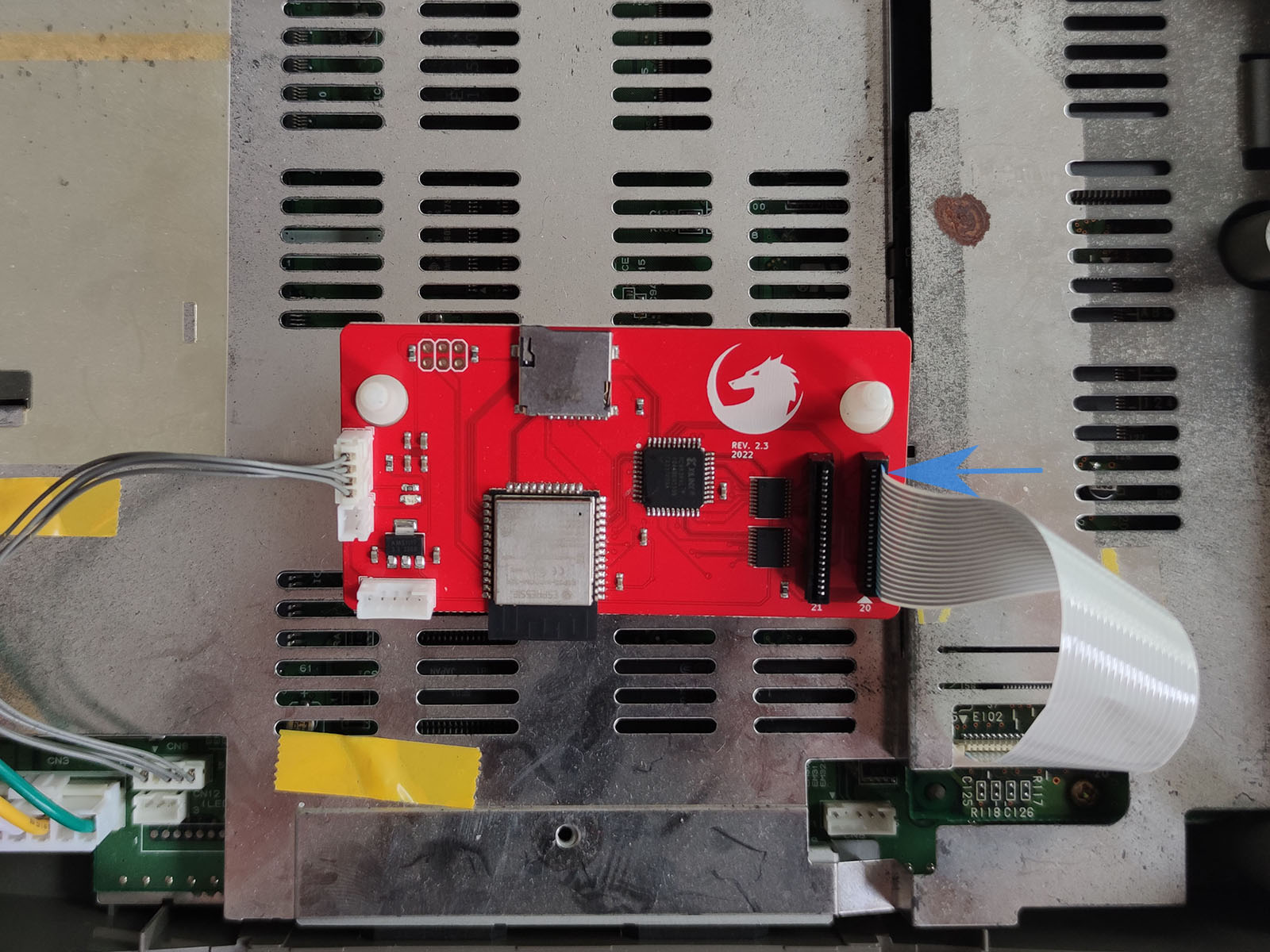

• Plug the flex cable with the reinforced tape (blue) in the correct direction.

On 20 pin models

On 21 pin models

Plug the flex cable with the reinforced tape (blue) in the correct direction.
